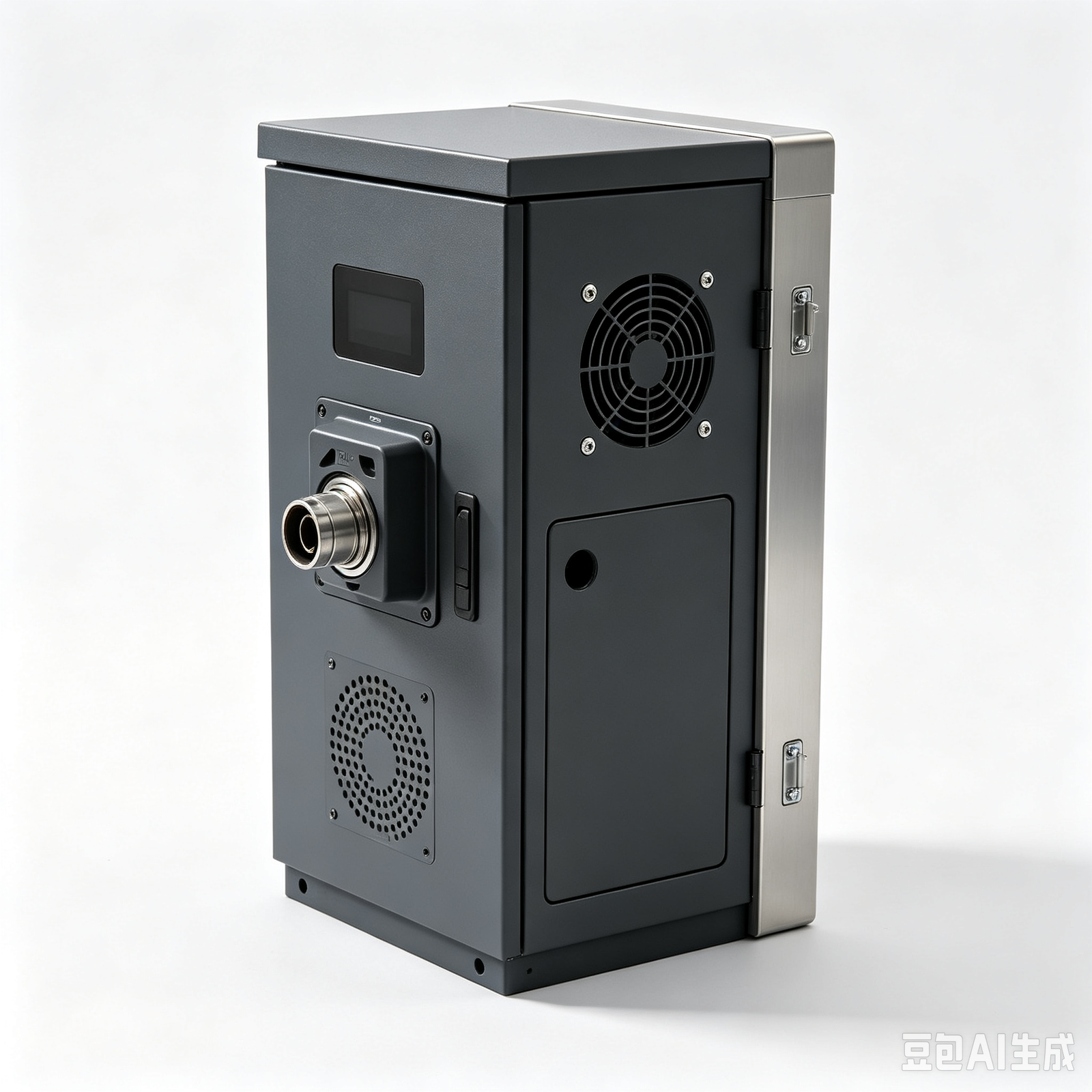

A: Yes — but IP67 is a process, not just a gasket. To guarantee IP67, we require: (1) CNC-machined gasket surface with flatness ≤0.1mm/100mm and Ra ≤ 1.6μm; (2) properly designed gasket groove (depth, width, corner radius matched to gasket specification); (3) compressed gasket (we recommend 25–30% compression); (4) pressure testing — we can perform IP67 water immersion test (1m depth, 30min) or air pressure decay test on every enclosure. If your current design has a stamped (not machined) gasket surface, we'll tell you it won't reliably achieve IP67 — and we'll recommend the machining operation needed.

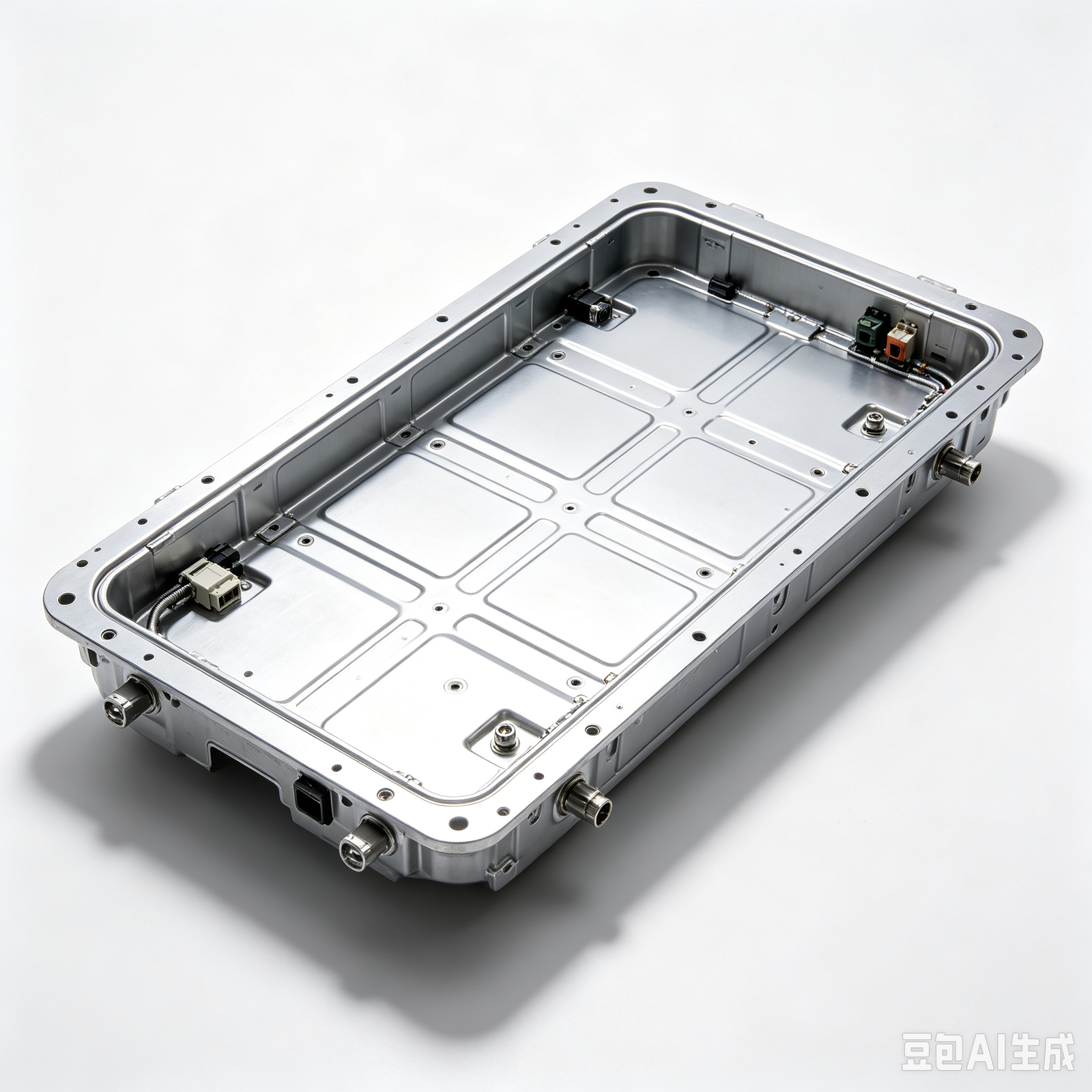

A: We use a 5-step distortion control process: (1) weld sequence optimization — symmetrical, alternating sequence to balance thermal stress; (2) fixture-based welding — we weld on a precision fixture that holds the part flat; (3) controlled heat input — pulse MIG or laser welding with minimal heat; (4) post-weld flattening — hydraulic press with precision dies to flatten critical surfaces to ≤0.3mm; (5) post-weld CNC machining — for sealing surfaces and critical mounting holes, we machine after welding to guarantee flatness and position. On a recent 1.2m × 0.8m battery tray, we achieved 0.3mm flatness (spec ≤0.5mm) with zero leaks.

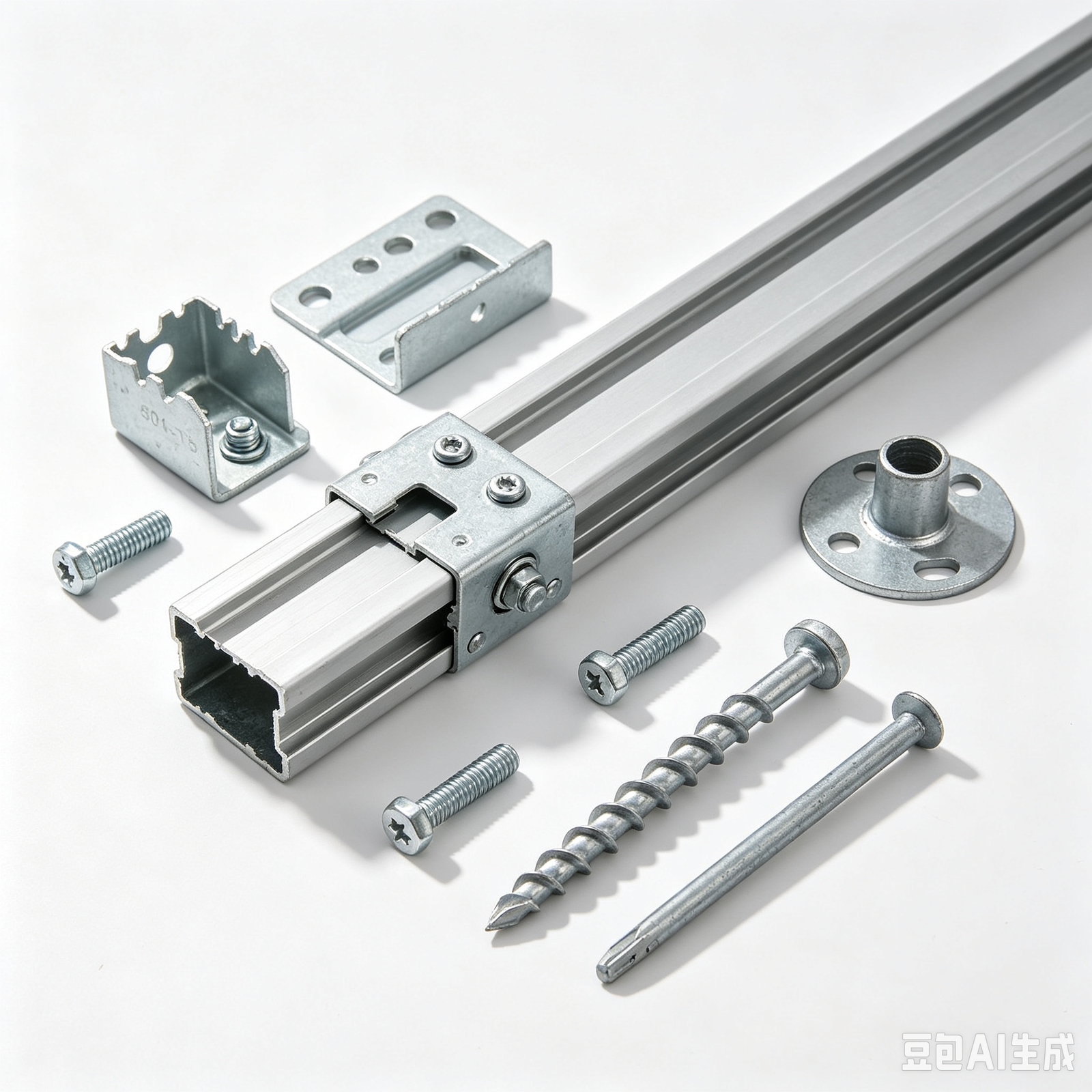

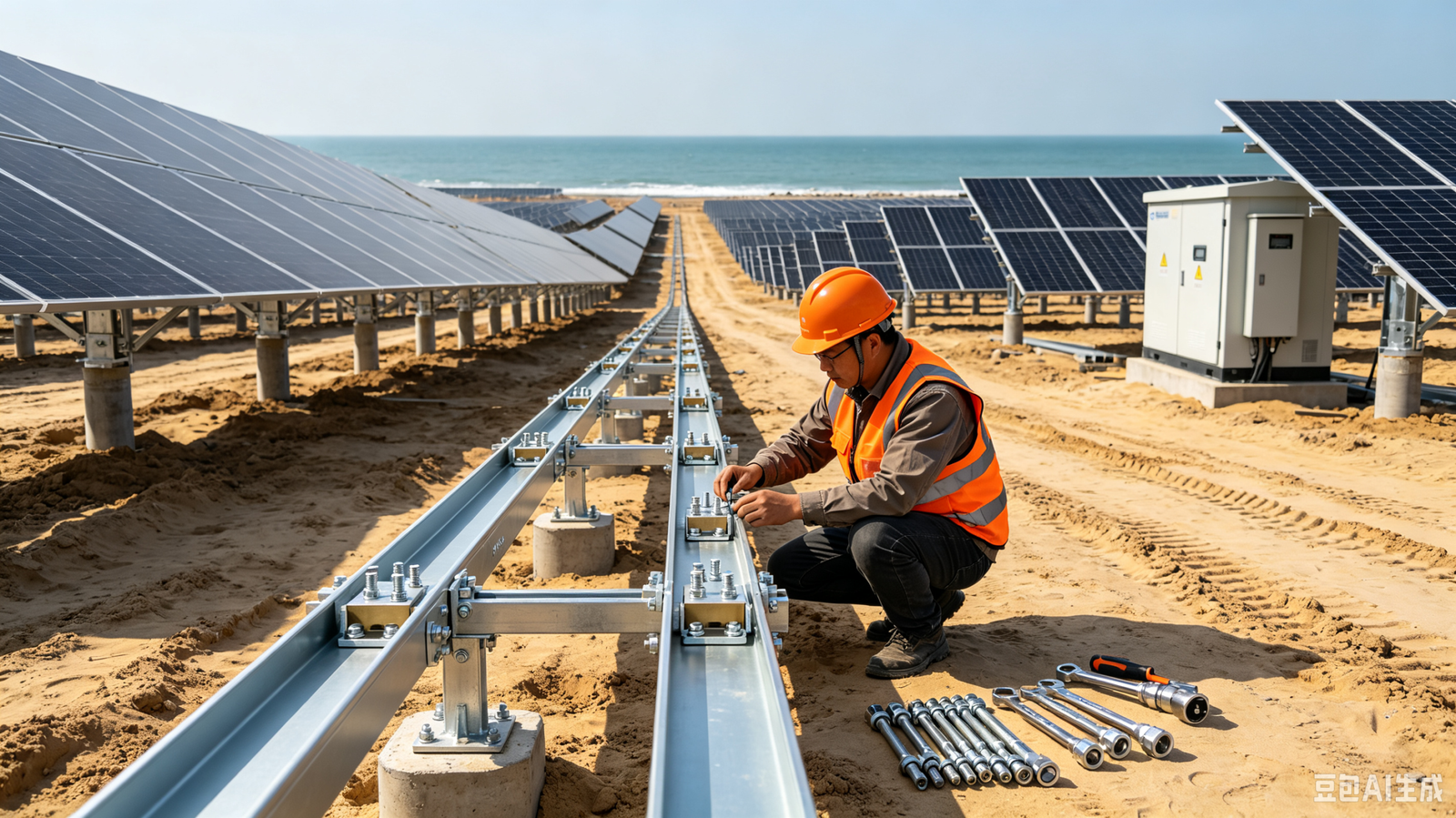

A: For coastal solar installations (within 5km of ocean, salt spray exposure), we recommend: (1) 304 stainless steel for all structural mounting hardware (mid/end clamps, rail connectors, ground screw flanges) — 25+ year corrosion life; (2) 6063-T5 aluminum with Type II anodizing (15μm+) for rails — 15–20 year life; (3) A4-70 (316 stainless) fasteners for all bolted connections; (4) rubber washers under all bolt heads to seal bolt holes; (5) edge coating for laser-cut aluminum parts (cut edges are unprotected and corrode first). Hot-dip galvanized steel is NOT recommended for coastal environments — it will rust in 3–5 years at bolt holes and cut edges.

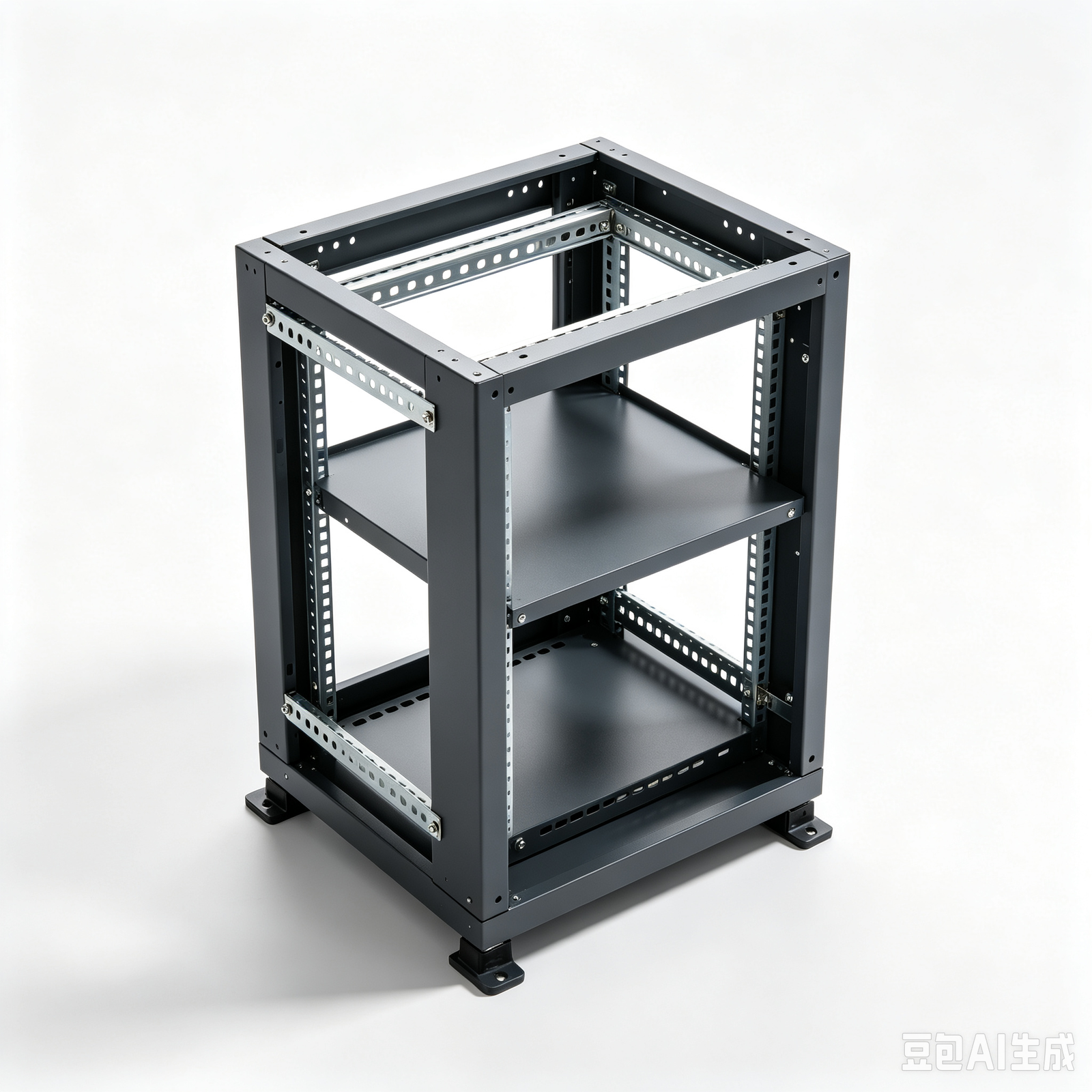

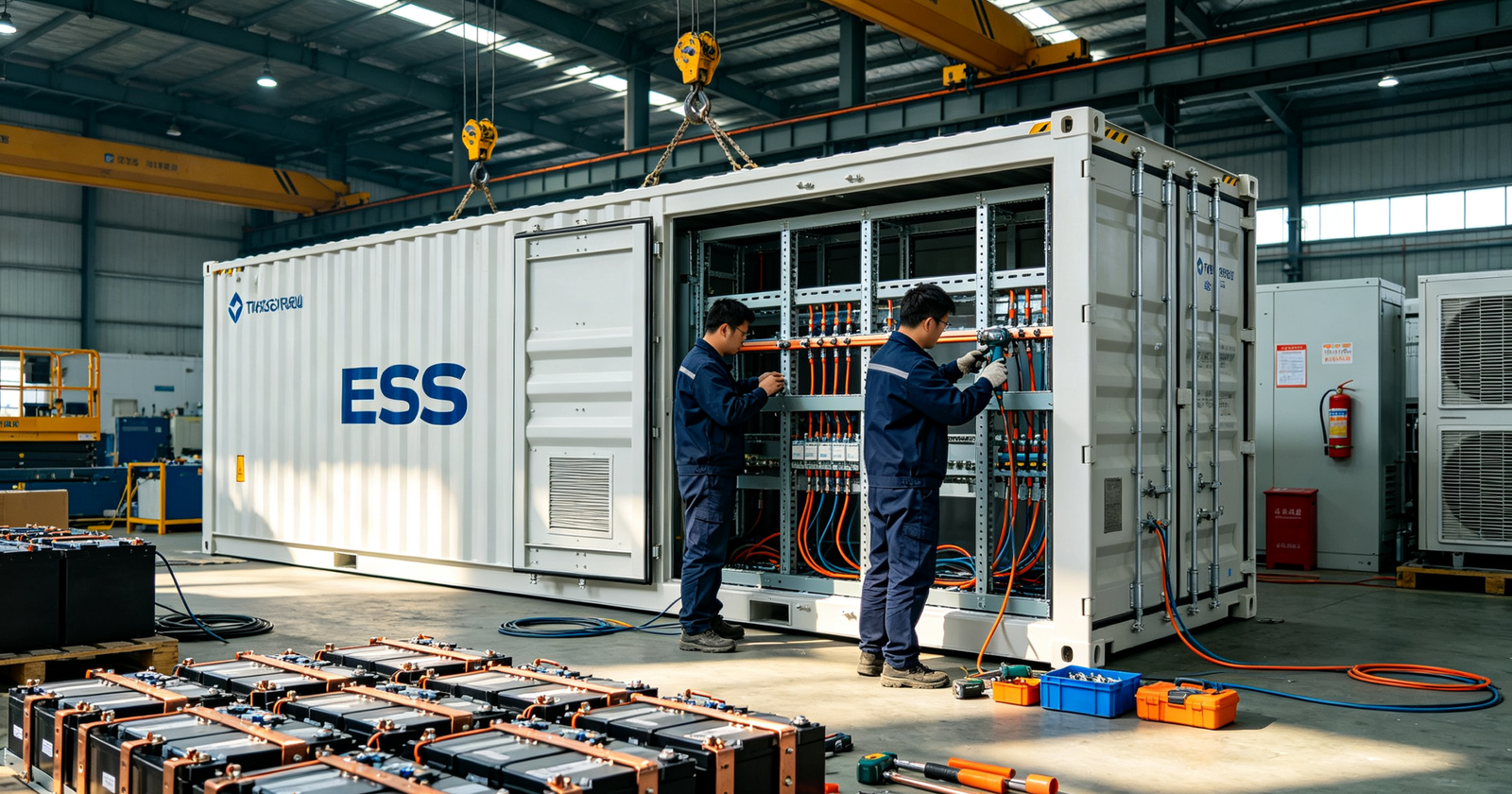

A: Yes — this is a common problem with large welded frames. We solve it through: (1) fixture-based welding — every rack is welded on the same CNC-machined fixture that locates all critical hole positions; (2) post-weld CNC machining — for critical mounting hole patterns (battery module, busbar, cooling manifold), we CNC machine after welding to guarantee position ±0.1mm; (3) slotted holes for non-critical interfaces — we design with adjustment slots where tight alignment isn't needed; (4) trial assembly — for multi-rack orders, we assemble 2–3 racks together before shipment to verify alignment; (5) CMM inspection — we measure critical hole patterns on every rack. On a recent 1MWh ESS project (20 racks), we achieved 100% first-time assembly.

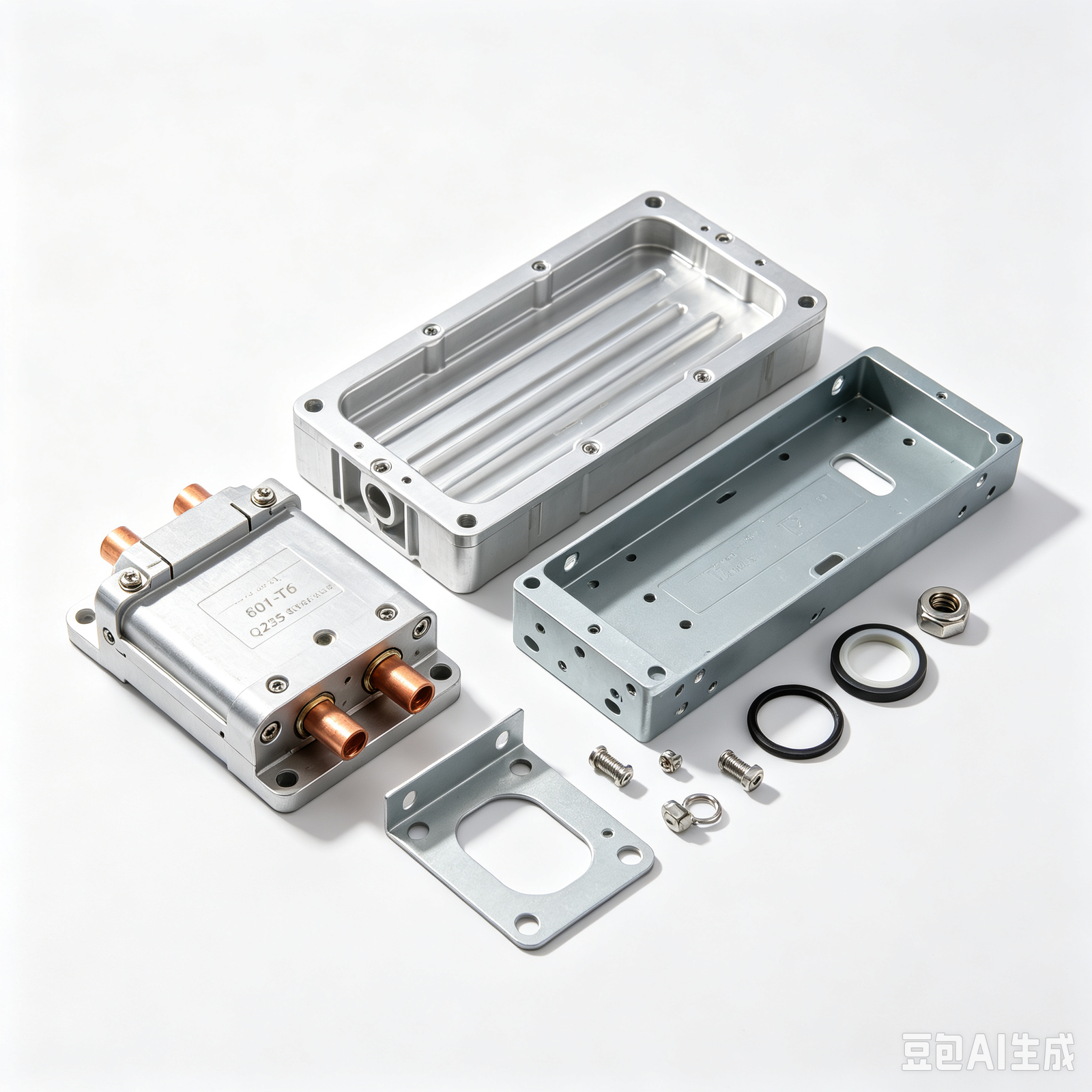

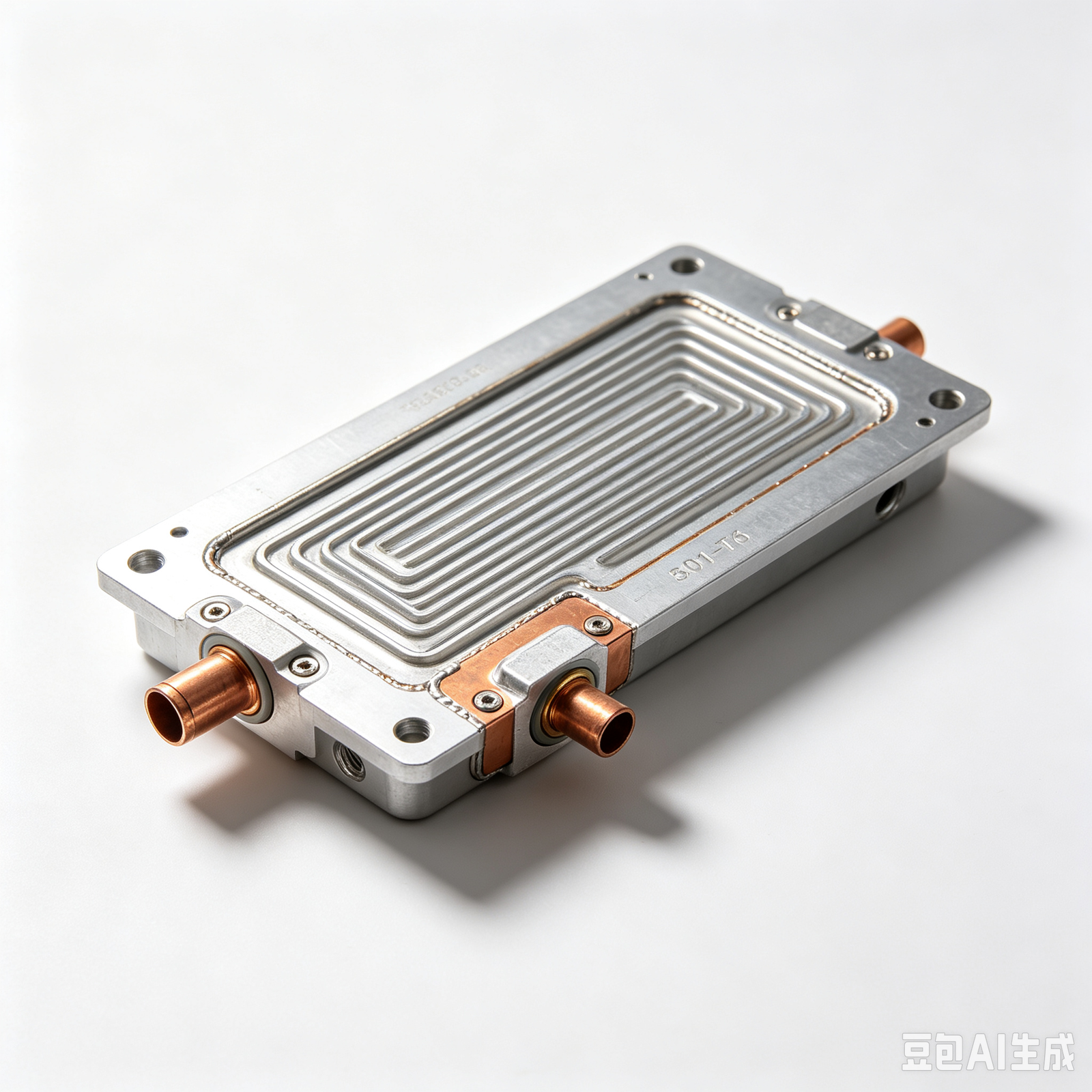

A: Two main technologies, each with pros and cons: (1) CNC-machined cooling plate — we machine channels into a solid aluminum block, then cover with a friction-stir-welded or brazed lid. Pros: fast prototype (7–10 days), design flexibility, good thermal performance. Cons: higher material cost (solid block), limited channel complexity. (2) Vacuum-brazed cooling plate — we stack multiple etched/formed aluminum sheets and braze them in a vacuum furnace. Pros: complex microchannel designs, lower material cost (thin sheets), high thermal performance. Cons: longer lead time (20–30 days), higher tooling cost, design changes require new tooling. For prototypes and low-volume (1–100 units), we recommend CNC-machined. For high-volume (500+ units) with complex channels, we recommend vacuum-brazed.

Our standard term is 30‑50% deposit upon order confirmation, balance paid before shipment. Flexible terms can be discussed for long‑term strategic OEM partners.

We deliver integrated CNC plus sheet‑metal one‑stop manufacturing. Our pricing covers material traceability, strict quality control, NDA IP‑protection, surface finishing and reliable lead‑time control. We avoid hidden rework costs common from cheap fragmented suppliers.

Every project gets dedicated engineering and production scheduling. We evaluate lead‑time at quotation stage and communicate proactively if any risk occurs. In‑house CNC and sheet‑metal capacity greatly reduces delays from outsourced subcontractors.
