Product Overview
High-Density Micro-Channel Copper Cold Plates for AI Server Liquid Cooling
As AI computing density continues to surge, GPU power consumption has surpassed the 700W–1000W range, pushing traditional air-cooling solutions to their physical limits. Liquid cold plates — mounted directly against GPU/ASIC chip surfaces — have become the critical thermal interface in modern AI servers. The micro-channel geometry inside these cold plates directly determines system thermal resistance and heat transfer efficiency.
AXI Metal provides precision CNC machining services for copper cold plates and vapor chamber bases used in AI servers and data center liquid cooling systems. Using high-purity C1100 oxygen-free copper, our high-precision CNC milling process achieves micro-channel structures as narrow as 0.3mm, paired with electroless nickel plating to meet the demanding requirements of high thermal conductivity, corrosion resistance, and solderability.
We support flexible delivery from single-piece prototypes to low-volume OEM validation batches.
Core Manufacturing Capabilities
We produce cnc machined ai server cold plate, GPU liquid cold plate and vapor chamber base for ai server as CNC precision parts.
Micro‑channel CNC Milling

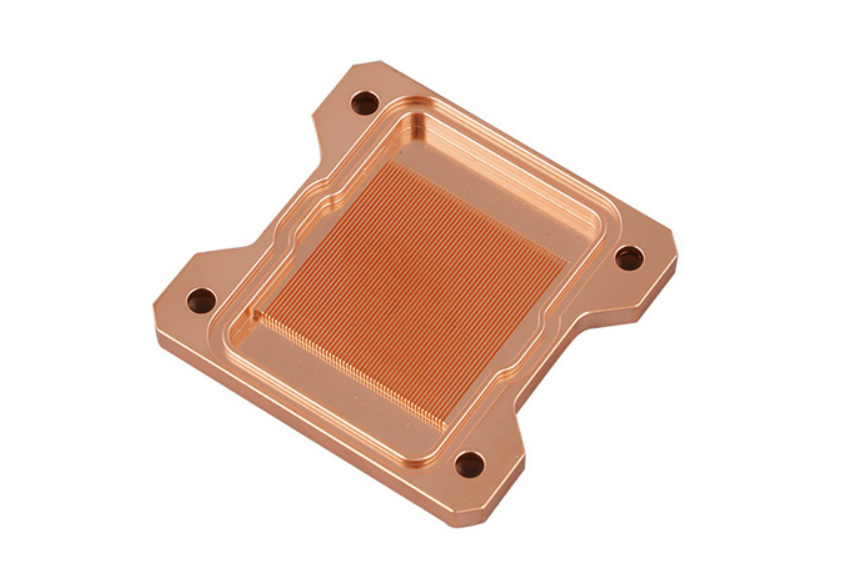

Precision CNC milling for copper C1100 cold plates, minimum micro‑channel width down to **0.3 mm**. Strictly control channel depth, pitch and surface quality to maintain balanced coolant flow and low pressure drop for high‑heat‑flux GPU cooling.
Nickel Plating Surface Treatment
Nickel plating service for copper cold plates. Effectively reduces copper‑coolant galvanic corrosion risk for long‑running rack liquid‑cooling loops. Plating thickness can be customized according to OEM project standards.
Vapor Chamber Base CNC Machining
CNC‑machined copper or aluminum vapor‑chamber base substrates. High‑flatness sealing surfaces, customized positioning bosses and mounting holes prepared for subsequent vapor‑chamber brazing & assembly.
Key Precision Specs
Base flatness down to ±0.01 mm; critical dimension tolerance ±0.005~0.02 mm. Support custom port threads, manifold interfaces, mounting patterns matching mainstream AI GPU hardware.
Order Flexibility
Support 1‑piece prototype and
low‑volume oem cold plate validation
batches. Ideal for pre‑production thermal verification before mass roll‑out.
Quality Control Items

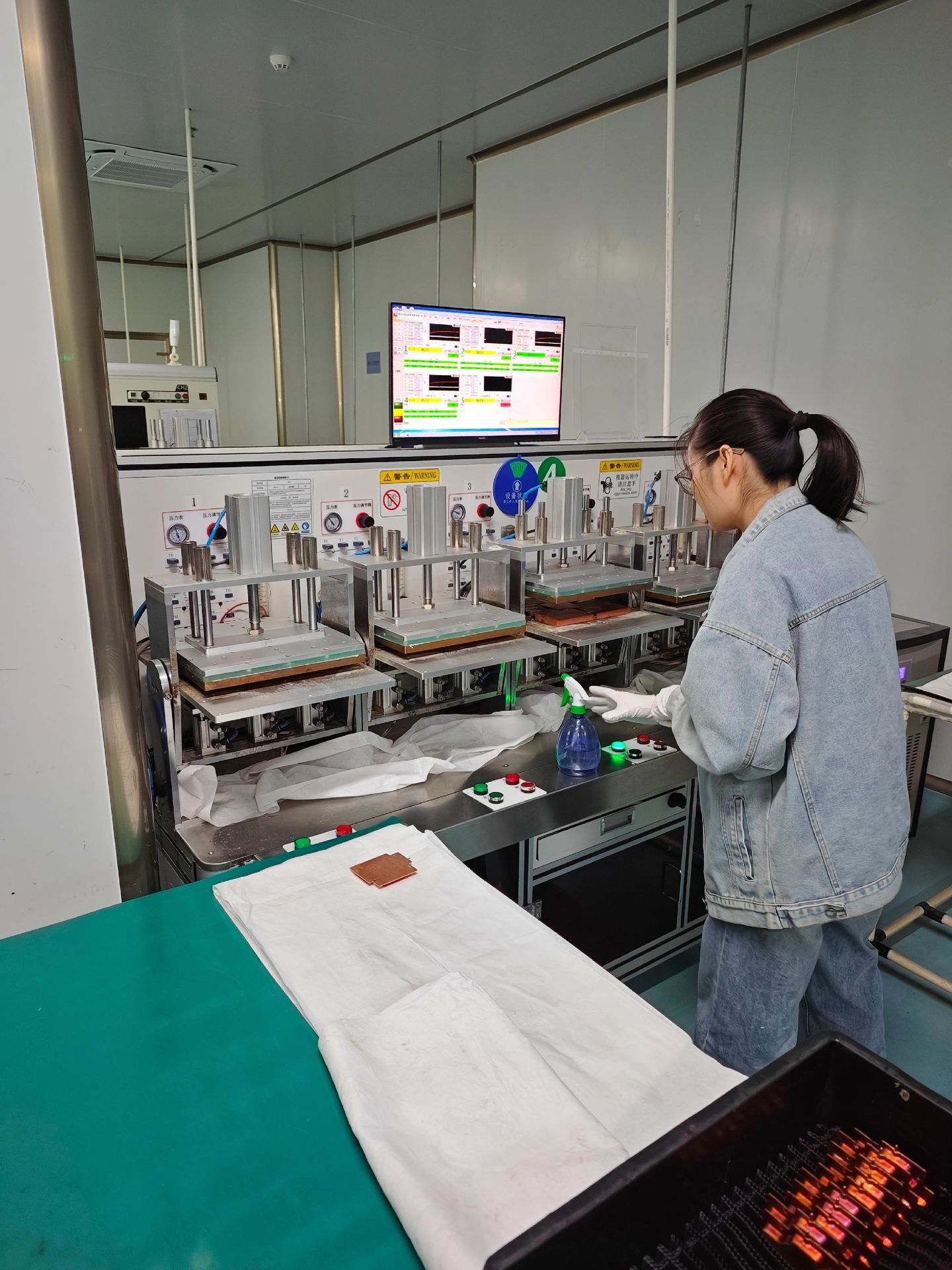

Material verification, dimensional inspection, flatness measurement, visual inspection for micro‑channels, plating‑layer check. Pressure‑leak test can be performed upon request. Inspection reports available for OEM project acceptance.
B2B Buyer Confirmation Table
Before requesting quotation for ai server cold plate / liquid cold plate CNC, buyers should confirm below specifications to avoid sample rejection & project delay.
| Buyer Requirement | Key Specification | Why It Matters |
|---|---|---|
| Cold plate / vapor‑chamber base drawing | Drawing revision, critical tolerance, datum reference | Avoid machining deviation for GPU thermal interface |
| Micro‑channel requirement | Channel width(0.3 mm available), depth, pitch, flow path layout | Directly decides thermal performance & pressure drop |
| Material & surface finish | C1100 copper / aluminum; nickel‑plating thickness requirement | Prevent corrosion in liquid‑cooling loops |
| Physical & test criteria | Base flatness, pressure‑test requirement, leak‑test standard | Critical for real‑server reliability |
| Order scope | Prototype quantity, OEM validation batch quantity, target delivery schedule | Arrange production scheduling for low‑volume runs |
| Project environment | Rack‑level AI‑server working condition, coolant type | Optimize material and plating selection |
Send complete CAD drawings together with above specs, we provide free DFM review for your cold‑plate & vapor‑chamber‑base project.
Why Choose AI Server Cold Plates & Vapor Chamber Base From Aximetal For Your Next Project?
Choosing proper material determines part performance, service life and project cost. For R&D engineers developing energy‑storage cabinets, robotic automation enclosures and pump & fluid control components, Aximtal provides custom aluminum CNC machining and sheet metal fabrication with tight tolerances for prototypes and batch orders, serving Central Asia, Russia, Turkey, Middle East, North Africa and Southeast Asia.
- High‑precision micro‑channel CNC capability: We machine 0.3 mm fine micro‑channel on C1100 copper cold plates. Stable channel geometry for reliable GPU heat‑dissipation performance.
- Nickel‑plating anti‑corrosion solution:Custom nickel‑plating for copper cold plates, solving copper‑coolant corrosion risks for long‑term rack liquid‑cooling operation.
- Complete vapor‑chamber‑base CNC service: Precision‑machined base substrates for AI‑server vapor‑chamber assembly, high‑flatness sealing & mounting surfaces.
- Low‑volume OEM validation support:Perfect for thermal‑solution OEM teams for prototype and pilot validation batches of ai server cold plate.
- Export‑oriented quality & documentation support: Inspection records, test reports available for OEM project acceptance; strict drawing confidentiality.
Partner with Aximetal to convert your drawings into AI Server Cold Plates & Vapor Chamber Base parts. We handle from small‑batch prototyping to mass production for global industrial buyers.
Contact Aximetal engineering team for custom options & project quotation.
Custom AI Server Cold Plates & Vapor Chamber Base Material Solutions
At Aximetal, we process a full‑range aluminum alloy grades for custom CNC machining and sheet‑metal fabrication. Proper material selection balances mechanical performance, corrosion resistance and manufacturing cost for energy‑storage, robotic automation, pump & fluid control and industrial equipment projects, supporting prototype and volume orders for Central Asia, Russia, Turkey, Middle East, North Africa and Southeast Asia clients.
Material & Process Selection Reference
| Material | Typical Usage | Process Option | Limitation |
|---|---|---|---|
| C1100 Copper | GPU micro‑channel cold plates, high‑heat‑flux vapor‑chamber base | CNC micro‑channel milling, nickel plating | Higher raw‑material cost; risk of corrosion without plating |
| 6061‑T6 Aluminum | Low‑heat‑flux cold‑plate variants, auxiliary manifold structures | CNC machining, anodizing | Lower thermal conductivity vs copper; not for extreme heat‑flux GPU |
RFQ Checklist
To get accurate quotation for liquid cold plate CNC, please prepare:
CAD drawings or sample reference
Target application: AI server / GPU model, rack working condition
Material selection, micro‑channel dimension requirement
Nickel‑plating or other surface‑finish specification
Flatness, pressure‑leak test and inspection‑document requirements
Prototype / OEM validation batch quantity & expected delivery date
Destination country and export‑packaging requirement
Surface Treatment For Custom CNC & Sheet‑Metal Components
At Aximetal, we select matching surface finish solutions based on your working environment, target market and project specification. Before starting custom CNC & sheet‑metal fabrication orders, every surface‑treatment option will be confirmed with you. Our in‑house finishing workshop supports anti‑corrosion performance for harsh‑condition projects for energy storage cabinets, robot enclosures and pump fluid equipment, delivering consistent branded quality for Central‑Asia, Russia, Middle‑East and Southeast‑Asia integrators.
Powder Coating
Robust protective coating for outdoor cabinet assemblies. Outstanding salt‑spray resistance, rich custom color options, ideal for BESS enclosures and automation housings deployed in coastal, high‑humidity blue‑ocean markets.
Anodic Oxidation
Build hard oxide layer on aluminum CNC machined components. Improve surface hardness & anti‑corrosion performance, widely applied for robotic structural parts and fluid‑control manifold components.
Brushed Polished
Uniform linear brushed metallic texture. Retain metal original grain, great visual quality for exposed mechanical covers and equipment panels for high‑end industrial OEM projects.
Sandblast
Uniform matte metal finish, optimizes bonding performance for subsequent painting or anodizing. Pre‑treatment standard for our 5‑axis custom machined industrial spare‑parts.
Mirror Polishing
High‑gloss mirror‑grade metal surface. Precision polishing for special decorative & mechanical contact components, strict visual inspection per Aximetal internal quality standard.
Electroplated
Electroplated protective layer enhances wear‑resistance & conductivity. Suitable for pump fluid conductive fittings and moving mechanical assemblies under complex working conditions.
Laser Engraving
Permanent logo, part‑number and specification marking. Support your private‑brand requirement for CKD kit exports, traceable marking for bulk aftermarket spare‑parts.
Screen Printing
Custom graphic, warning label and brand logo printing for sheet‑metal cabinets & housings. Perfect for finished‑look delivery for system integrator clients without secondary processing.
Application Scenarios
From heavy‑duty sheet‑metal enclosures to 5‑axis CNC‑machined manifold and structural parts, our combined CNC machining and sheet‑metal fabrication services deliver custom metal components for industrial equipment across Central Asia, Russia, Turkey, the Middle East, North Africa and Southeast Asia. With in‑house one‑stop production, we handle complex drawing‑based custom projects, provide CKD component kits for local system integrators, and fully comply with ISO 9001 standards for harsh‑environment operating conditions.
Our copper microchannel cold plate 0.3mm and nickel‑plated cold‑plate solutions target high‑power AI accelerators. The vapor chamber base for ai server acts as the precision substrate for two‑phase cooling assemblies.
AI rack‑mount servers & GPU clusters
HPC high‑performance computing hardware
Data‑center direct‑to‑chip liquid‑cooling projects
New‑thermal‑solution OEM low‑volume validation batches
Industrial 3D‑Printing Machinery
General Industrial OEM & CKD Kits
Your Innovation, Protected: Uncompromising IP Security & NDA Compliance
At Aximetal, your proprietary designs are treated as your most valuable assets. As a trusted manufacturing partner for precision custom CNC & sheet‑metal fabrication services, our commitment to protecting your intellectual property is absolute. We operate under a strict Zero‑Leak Policy, ensuring that every blueprint, CAD model, and prototype remains completely secure within our encrypted engineering ecosystem.
We proactively provide comprehensive Non‑Disclosure Agreements (NDAs) that fully align with international legal standards, giving you total peace of mind before file sharing begins. Our internal security protocols enforce segmented data access, encrypted servers, and restricted workshop access. Whether you are an OEM protecting sensitive industrial designs for energy‑storage, robotic automation or pump & fluid control equipment, or a system integrator launching CKD component kits for Central Asia, Russia, Turkey, the Middle East, North Africa or Southeast Asia markets, Aximetal acts as a secure, confidential extension of your team.
Talk to our expert teamEngineering & Manufacturing FAQ
We are a direct‑source factory integrating CNC machining and sheet‑metal fabrication. All custom metal components are produced in‑house, no middleman markup. We serve OEM & system integrator clients across energy storage, robotic automation, pump & fluid control equipment and deliver CKD component kits for emerging blue‑ocean markets.
Absolutely. We provide formal international‑standard Non‑Disclosure Agreements before you share CAD drawings, sketches or prototype data. We enforce segmented data access, encrypted engineering storage and zero‑leak internal policy to fully safeguard your intellectual property.
Yes. We realize **copper microchannel cold plate 0.3mm** via precision CNC milling on C1100 copper. DFM review will evaluate manufacturability and pressure‑drop trade‑offs for your flow‑path design.
Yes. We support single‑piece prototype and low‑volume OEM validation batches for **ai server cold plate** and vapor‑chamber‑base CNC precision parts.
We support low‑volume prototyping as well as mass‑volume production. There is no strict minimum‑order‑quantity. We work with small‑batch prototype projects and large‑scale CKD kit orders for overseas system integrators alike.
Our standard term is 30‑50% deposit upon order confirmation, balance paid before shipment. Flexible terms can be discussed for long‑term strategic OEM partners.
We deliver integrated CNC plus sheet‑metal one‑stop manufacturing. Our pricing covers material traceability, strict quality control, NDA IP‑protection, surface finishing and reliable lead‑time control. We avoid hidden rework costs common from cheap fragmented suppliers.
Every project gets dedicated engineering and production scheduling. We evaluate lead‑time at quotation stage and communicate proactively if any risk occurs. In‑house CNC and sheet‑metal capacity greatly reduces delays from outsourced subcontractors.
